XN-2000

Category:

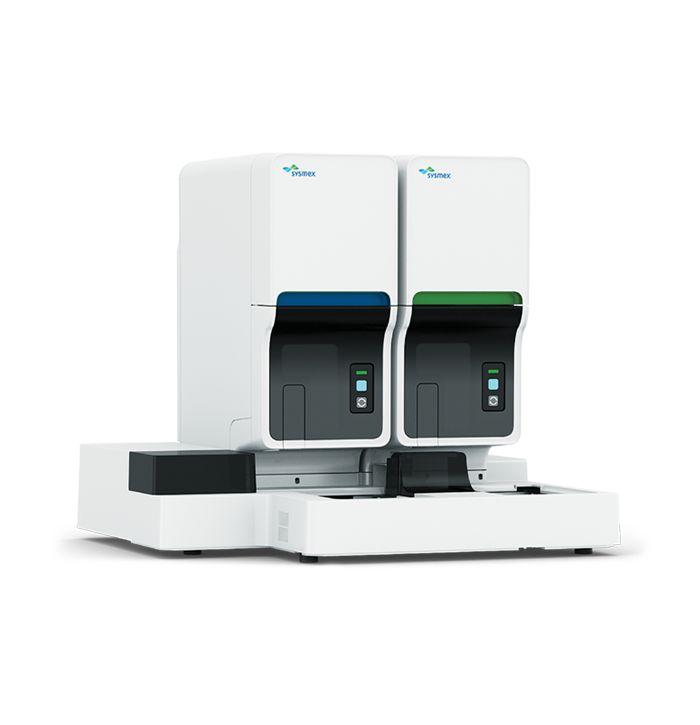

Workload Optimisation: Fully automated 6-part differential haematology analyser offering diagnostic scalability. This benchtop system is a combination of two analytical modules and is equipped with a Rerun & Reflex sampler, which makes it a superb solution for basic and extended testing.

Patient blood management

XN-2000

  • Hourly capacity of up to 200 samples per hour

  • Unique co-primary solution

  • Automatic workload balancing between the 2 analysers

  • Reagent sharing option is available

  • A floor-standing wagon for system and reagents is optional.

The XN-2000, a 6-part differential haematology analyser, is a combination of two analytical modules capable of processing 200 samples per hour. Equipped with all the available diagnostic applications and an enhanced sample processing, this standalone-compact solution offers productivity and greater security as one can act as a back-up solution anytime. A complementary XN-20 system can be combined with the XN-10, providing improved differentiation of abnormal WBC populations.

Measurement principles
  • WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
  • RBC/PLT: Hydrodynamically focussed DC detection method
  • HGB: Cyanide-free SLS haemoglobin
Aspiration volume 88 µL in whole blood (WB) mode and body fluid (BF) mode
Throughput up to 200 samples/h
Quality control XN Check (three levels) and XN Check BF (two levels)
Parameters
  • XN-CBC (always with NRBC) & XN-DIFF (always with IG)
  • Whole Blood
    WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
  • With RET (optional)
    RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
  • With PLT-F (optional)
    PLT-F, IPF%, IPF#
  • With WPC (optional)
    HPC%/ HPC#
  • With Body Fluid (optional)
    WBC-BF, RBC-BF, TC-BF#,MN%, MN#, PMN%, PMN#,
+ Features & Benefits

The XN-2000, a 6-part differential haematology analyser, is a combination of two analytical modules capable of processing 200 samples per hour. Equipped with all the available diagnostic applications and an enhanced sample processing, this standalone-compact solution offers productivity and greater security as one can act as a back-up solution anytime. A complementary XN-20 system can be combined with the XN-10, providing improved differentiation of abnormal WBC populations.

+ Specifications
Measurement principles
  • WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
  • RBC/PLT: Hydrodynamically focussed DC detection method
  • HGB: Cyanide-free SLS haemoglobin
Aspiration volume 88 µL in whole blood (WB) mode and body fluid (BF) mode
Throughput up to 200 samples/h
Quality control XN Check (three levels) and XN Check BF (two levels)
Parameters
  • XN-CBC (always with NRBC) & XN-DIFF (always with IG)
  • Whole Blood
    WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
  • With RET (optional)
    RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
  • With PLT-F (optional)
    PLT-F, IPF%, IPF#
  • With WPC (optional)
    HPC%/ HPC#
  • With Body Fluid (optional)
    WBC-BF, RBC-BF, TC-BF#,MN%, MN#, PMN%, PMN#,
